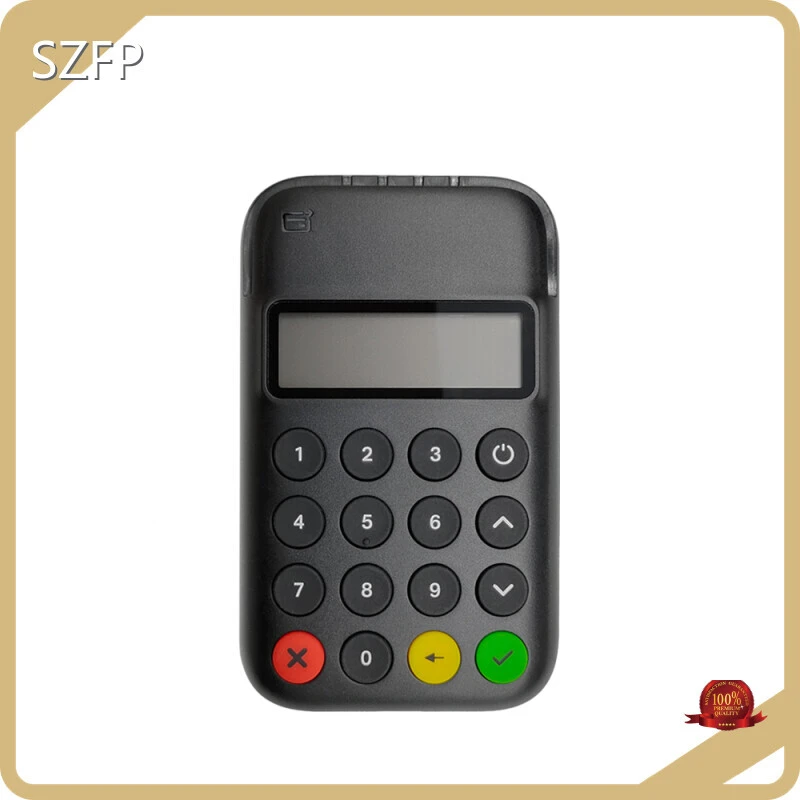

Product details of the mpos

Product Introduction

The colors of mpos is highly pure. By improving the manufacturing technology, mpos now gains more and more attention at home and abroad. SZFP Technology Limited has large-scale integrated processing plant for mpos.

MODEL	FP9320
Processor	32-bit ARM CPU, 192 MHz
Memory	256KB SRAM + 512KB Flash ；External Storage: 1MB Flash
EMV Card Reader	EMV/PBOC Chip Card Reader, ISO 7816 Compliant Class A, B, C
Magnetic Stripe Card Reader	Dual track (track 1 & 2)
NFC Reader	EMV contactless, ISO 14443A/B
Communication Interface	Bluetooth v3.0, Bluetooth BLE and USB
Battery	Lithium polymer rechargeable battery 250 mAH, 3.7V
Charging	Via micro USB
Display	Single color display (128 x 40)
Indicator	LED status indicator & NFC LED indicator
Key Management	DUKPT, Fixed Key, MK/SK
Encryption Algorithm	DES, 3DES, AES, RSA, SHA-256
Environmental Conditions	Storage temperature ( -10℃ to + 55℃), Operating temperature ( 0℃ to + 45℃) Humidity (5% to 95% non-condensing)
Support Operating System	Android 2.1 or above iOS 6.0 or above Windows Phone 8 MS Windows
Certifications	PCI PTS 5.x with SRED EMV L1&L2, EMV contactless L1 Visa PayWave, MasterCard PayPass, PURE Discover D-PAS, Amex Expresspay, Rupay qSPARC PBOC 3.0 L1&L2, UnionPay QuickPass PCI PIN Security, MasterCard TQM Bluetooth BQB, FCC, CE, RoHS
Dimension	99 x 59.03 x 16.1 mm
Weight	80g

Product advantage

FP9312(1)

FP9312(2)

FP9312(3)

FP9312(4)

FP9312(5)

FP9312(6)

fAQ

How do we proceed an order?

It is much appreciated if you could tell us your exact requirements/specification, then we will send a proforma invoice for you to make payment. Payment via Western Union, Paypal or T/T. Samples will be ready after full payment received. For bulk order, we require 30% deposit in advance, pay the 70% balance before shipping.

What do you offer?

We supply both hardware and software of POS system. We have POS terminals with Linux, WinCE, Android and other systems, wireless printer, signature pad, keypad/pinpad, POS accessories, etc.

How to do the freight calculation?

Shipment charges are calculated according to the higher of actual or volumetric weight and any shipment may be re-weighed and re-measured by the carrier to confirm this calculation.

Do you have warranty?

Can you give warranty of your products? Yes,we have warranty of 1 year period. we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with products' quality or service.

Company Advantage

• We pay great attention to talents cultivation, and firmly believe that a professional team is the treasure for our enterprise. Thus, we have built an elite team with integrity, dedication and innovative ability. It is the motivation for our company to develop rapidly.
• Since the inception in SZFP has been engaged in the R&D and production of Android Pos,MPos,Traditional pos. So far we have accumulated rich industry experience.
• Our company's products have moved from domestic to international markets. They are exported to Southeast Asia, Africa, Europe and the United States and other countries and regions.
If you are interested in SZFP's Android Pos,MPos,Traditional pos, don't forget to leave your contact for later communication!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
