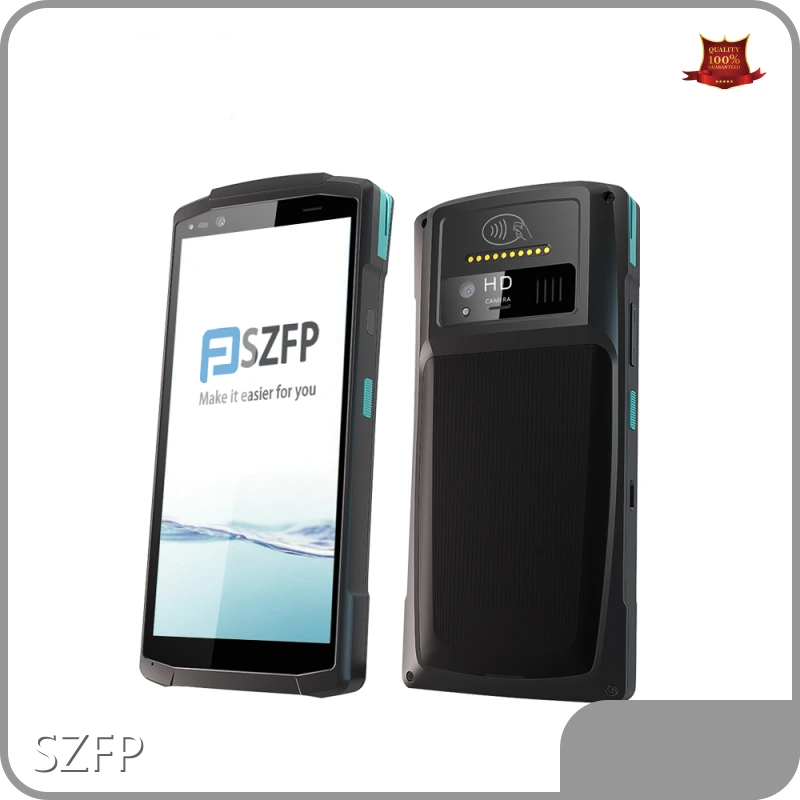

Pos Machine Scanner by SZFP-1
Product details of the pos machine scanner
Product Overview
It is pos machine scanner that makes it more reliable. The product is able to meet customers' expectation with respects to functionality, reliability, and durability. The product is deeply relied by customers for these features.
Product Introduction
More detailed information about pos machine scanner is provided for you as follows.
|
Model |
FP7600 |
|
OS |
Safedroid OS (based on Android 10.0)
|
|
CPU |
Qualcomm Octa-Core ARM Cortex-A53 1.8GHz
|
|
ROM |
16GB ROM EMMC
|
|
RAM |
2G RAM LPDDR3
|
|
Display |
5.7 inch TFT IPS LCD, resolution 1440*720
|
|
Panel |
Ultra sensitive capacitive touch screen, can work with gloves and wet fingers
|
|
Dimensions |
163mmX77mmX17.5mm (max 21.8mm)
|
|
Weight |
300g (Battery included)
|
|
Keys |
Physical keys: Power on/off, Volume + /-, Scan1/ Scan2
|
|
Input |
Chinese/English, and supports handwriting and soft keyboard
|
|
WIFI |
IEEE 802.11 a/b/g/n, support dual Band 2.4GHZ and 5GHZ
|
|
Bluetooth |
BT 4.2 LE and earlier |
|
4G |
European version(Default): FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28 TDD-LTE: B38/B39/B40/B41
American version(Optional): FDD-LTE: B2/B4/B5/B12/B13/B17/B25/B26 TDD-LTE: B38/B40/B41
|
|
3G |
European version(Default): WCDMA: B1/B2/B4/B5/B8 TD-SCDMA: B34/B39
American version(Optional): WCDMA: B2/B4/B5
|
|
2G |
GSM/GPRS/EDGE: 850/900/1800/1900MHZ
|
|
Magcard reader |
Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional
|
|
Smart Card reader |
Supports ISO7816 standard
|
|
Contactless Card reader |
Supports 14443A/ 14443B
|
|
Camera |
5MP camera with LED flash and auto-focus function
|
|
Satellite Positioning |
Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo
|
|
LEDS |
3PCS for indication
|
|
Audio |
Speaker, Buzzer, Microphone, Receiver
|
|
Micro SD Card Slot
|
1 PCS support up to 128GB
|
|
SIM Card Slot |
1 PCS MICRO SIM
|
|
PSAM Card Slot |
2 PCS Conforms to ISO7816 standard
|
|
USB Port |
1PCS TYPE C USB
|
|
Battery |
Li-ion battery, 4.35V/3500mAH
|
|
Charging Port |
Type C USB Port, 5V DC/2A
|
|
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-20°C to 70°C |
|
Humidity |
5% to 95% Relative Humidity, Non-Condensing
|
|
Electromagnetic |
CE, Rohs, FCC |
|
Payment |
PCI PTS 6.X, EMV L1&L2
|
|
Barcode Scanner (Optional） |
Symbol 4710 2D Image Engine, Support 1D and 2D symbologies
|
Product advantage
fAQ
Company Information
SZFP Technology Limited is a modern company that mainly produces Android Pos,MPos,Traditional pos in shen zhen. With the vision of 'sustainable development' and the mission of 'continuously creating value for customers and promoting change', our company is committed to growing into the world's most influential enterprise with brand value. Our company has established an experienced team of professionals in all ages. They provide internal motivation for our steady development. In addition to creating excellent Android Pos,MPos,Traditional pos, SZFP is also able to provide comprehensive and reasonable solutions for customers.
With years of experience in production, we guarantee our product quality so you can purchase them with confidence. Feel free to contact us!
