Pos Fingerprint Scanner - - SZFP-1
Product details of the pos fingerprint scanner
Quick Overview
SZFP Technology Limited's R&D engineers use their professional technical knowledge to design high quality, high performance, high stability pos fingerprint scanner. The product is quality-assured and holds many international certificates, such as ISO certificate. The pos fingerprint scanner produced by SZFP is widely used in many industry sectors. pos fingerprint scanner can be easily maintained.
Product Introduction
Compared with similar products, our pos fingerprint scanner is provided with the following competitive advantages.
|
Model |
FP7600 |
|
OS |
Safedroid OS (based on Android 10.0)
|
|
CPU |
Qualcomm Octa-Core ARM Cortex-A53 1.8GHz
|
|
ROM |
16GB ROM EMMC
|
|
RAM |
2G RAM LPDDR3
|
|
Display |
5.7 inch TFT IPS LCD, resolution 1440*720
|
|
Panel |
Ultra sensitive capacitive touch screen, can work with gloves and wet fingers
|
|
Dimensions |
163mmX77mmX17.5mm (max 21.8mm)
|
|
Weight |
300g (Battery included)
|
|
Keys |
Physical keys: Power on/off, Volume + /-, Scan1/ Scan2
|
|
Input |
Chinese/English, and supports handwriting and soft keyboard
|
|
WIFI |
IEEE 802.11 a/b/g/n, support dual Band 2.4GHZ and 5GHZ
|
|
Bluetooth |
BT 4.2 LE and earlier |
|
4G |
European version(Default): FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28 TDD-LTE: B38/B39/B40/B41
American version(Optional): FDD-LTE: B2/B4/B5/B12/B13/B17/B25/B26 TDD-LTE: B38/B40/B41
|
|
3G |
European version(Default): WCDMA: B1/B2/B4/B5/B8 TD-SCDMA: B34/B39
American version(Optional): WCDMA: B2/B4/B5
|
|
2G |
GSM/GPRS/EDGE: 850/900/1800/1900MHZ
|
|
Magcard reader |
Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional
|
|
Smart Card reader |
Supports ISO7816 standard
|
|
Contactless Card reader |
Supports 14443A/ 14443B
|
|
Camera |
5MP camera with LED flash and auto-focus function
|
|
Satellite Positioning |
Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo
|
|
LEDS |
3PCS for indication
|
|
Audio |
Speaker, Buzzer, Microphone, Receiver
|
|
Micro SD Card Slot
|
1 PCS support up to 128GB
|
|
SIM Card Slot |
1 PCS MICRO SIM
|
|
PSAM Card Slot |
2 PCS Conforms to ISO7816 standard
|
|
USB Port |
1PCS TYPE C USB
|
|
Battery |

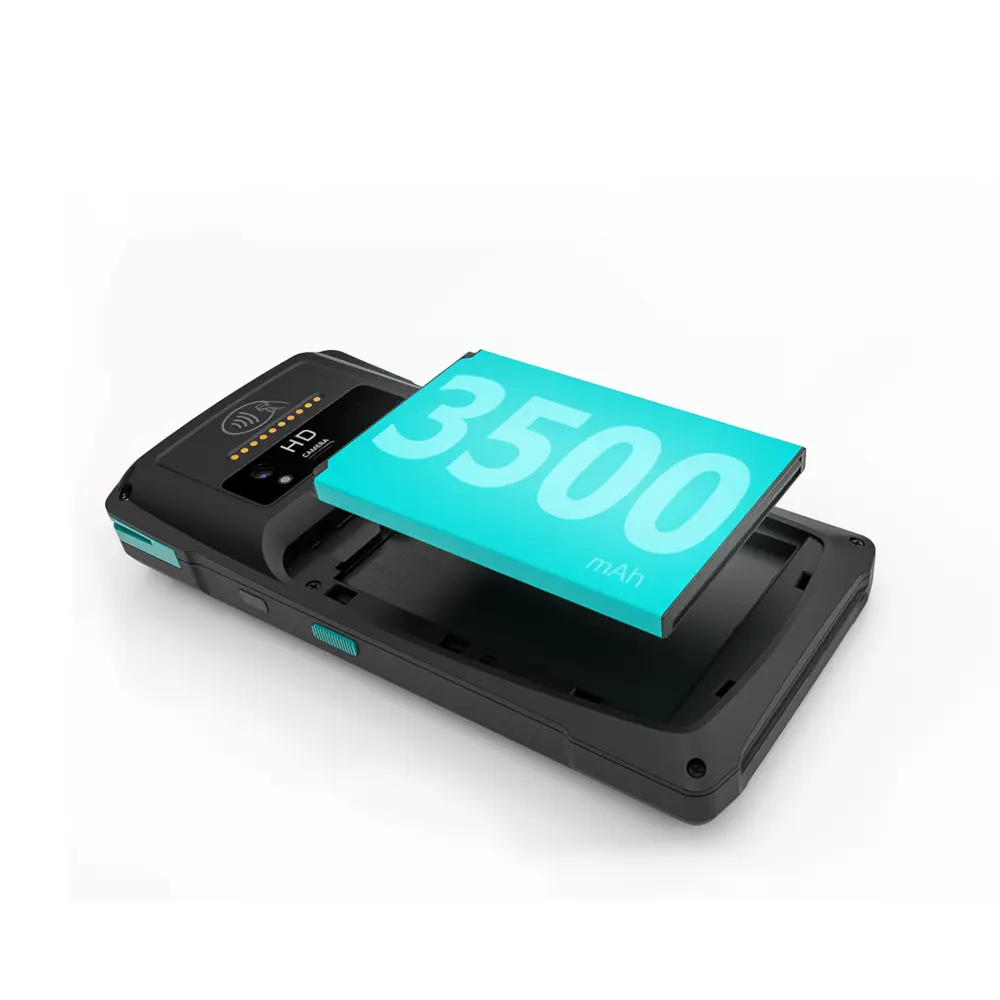

Li-ion battery, 4.35V/3500mAH
|
|
Charging Port |
Type C USB Port, 5V DC/2A
|
|
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-20°C to 70°C |
|
Humidity |
5% to 95% Relative Humidity, Non-Condensing
|
|
Electromagnetic |
CE, Rohs, FCC |
|
Payment |
PCI PTS 6.X, EMV L1&L2
|
|
Barcode Scanner (Optional） |
Symbol 4710 2D Image Engine, Support 1D and 2D symbologies
|
Product advantage
