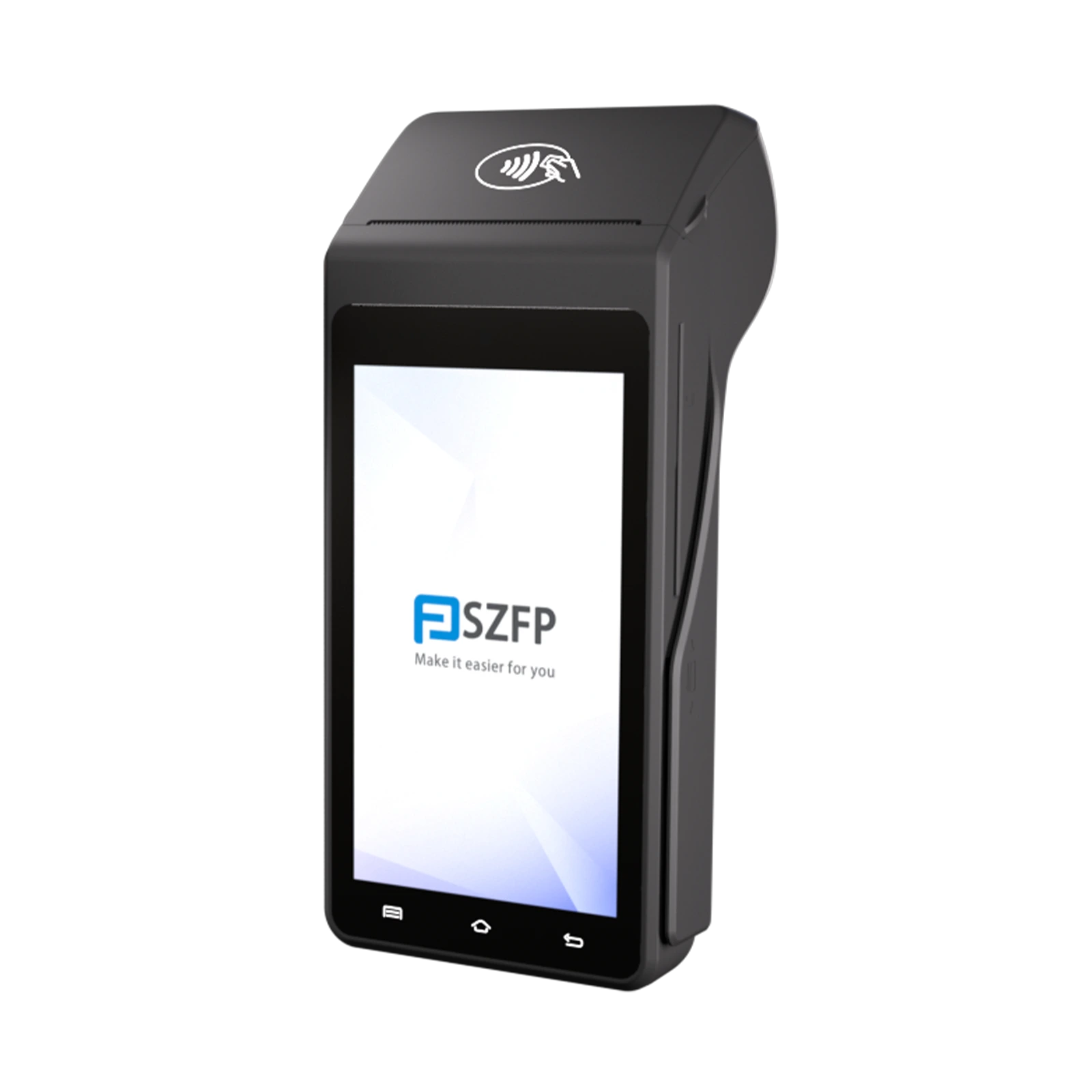

FP8801H Android Smart POS Terminal with 5” Full Touch Screen, Built-in Thermal Printer, Camera & Omni-Channel Payment Support
WIFI: Wi-Fi 2.4GHz (Optional 5GHz)
SPECIFICATION
| MODEL | FP8801H |
| OS | Based on Android 10.0 |
| Processor | Quad-core Cortex-A53, 1.4GHz+Secure Processor |
| Memory | RAM:1GB (optional 2GB) FLASH:8GB (optional 16GB) Micro SD(TF) card up to 32GB |
| Display | 5.0" Screen, 1280×720 Capacitive touchscreen |
| Communications | 4G 3G 2G |
| Bluetooth | BT 4.2 |
| WIFI | Wi-Fi 2.4GHz (Optional 5GHz) |
| Card Readers | Magnetic card reader, IC card reader, Contactless Card reader |
| Keys | 1 Power Key, 1 Function Key, 3 Touch Keys (Menu, Home, Back) |
| Printer | High-Speed Thermal Printer, Paper Width:58 mm, Diameter: 40 mm |
| Camera | 2MP Front Camera(optional) 5MP Rear Camera. 5MP Rear Camera (optional) 1D/2D QR Code Scanning |
| Environmental | Operating temperature: -10°C~ 50°C Storage temperature: -20°C- 70°C Relative humidity: 5%~95% |
| Dimensions | 181×80×68mm (LxW×H) |
| Audio | Speaker |
| Card Slots | 1*SIM 2*PSAM 1*Micro SD(TF) |
| Battery | 5200mAh, 3.6V |
| Indicator Lights | 4 LED indicators, 1 Charging indicator |
| Peripheral Ports | 1 * Powered USB Type-C |
| GNSS | GPS/BeiDou |
| Certificates | PCI PTS 6.x, EMV L1&L2, EMV CL L1, Mastercard Paypass, Visa Paywave, JCB J/Speedy, Amex Expresspay, Discover D-PAS, UnionPay QuickPass, RuPay, MIR, MCCS, Mastercard TQM, ROHS, FCC, CE, BIS, WPC, SONCAP |
Note: This is only reference documents and products specification should be studied from the real products provided
FP8801H
● 5"full touch screen,1280ú720
● Camera for qr code payment
● Built-in high-speed thermal printer
● Android 10 os, omni-channel payment full
● Communication capabilities, easily connected
● All the time
Product Configuration
Equipped with a quad-core Cortex-A53 processor (1.4GHz) with a secure processor, the FP8801H ensures fast, stable, and secure transaction processing. With 1GB RAM (optional 2GB) and 8GB Flash storage (optional 16GB), expandable via Micro SD (TF) card up to 32GB, it supports flexible application deployment and future upgrades.
Product introduction
The device integrates a high-speed 58mm thermal printer, enabling instant receipt printing, and includes camera support for QR code payment and 1D/2D barcode scanning. Optional 2MP front camera and 5MP rear camera further enhance scanning, identification, and operational versatility.
Product advantage
Powered by Android 10 OS, the FP8801H supports omni-channel payment methods, including QR code, card-based, and digital payments, while offering full communication capabilities to stay connected anytime. Designed for reliability, it operates smoothly in environments with temperatures from -10°C to 50°C and withstands storage conditions up to -20°C to 70°C. A 5200mAh battery provides extended working time, making the FP8801H a dependable all-in-one POS solution for modern businesses.
Key features
