FP7600 Android Pos Terminal Pos Scanner Card reader with 5.7 inch TFT IPS LCD 1

FP7600 Android Pos Terminal Pos Scanner Card reader with 5.7 inch TFT IPS LCD 2

FP7600 Android Pos Terminal Pos Scanner Card reader with 5.7 inch TFT IPS LCD 3

FP7600 Android Pos Terminal Pos Scanner Card reader with 5.7 inch TFT IPS LCD 4

FP7600 Android Pos Terminal Pos Scanner Card reader with 5.7 inch TFT IPS LCD 5

FP7600 Android Pos Terminal Pos Scanner Card reader with 5.7 inch TFT IPS LCD 6

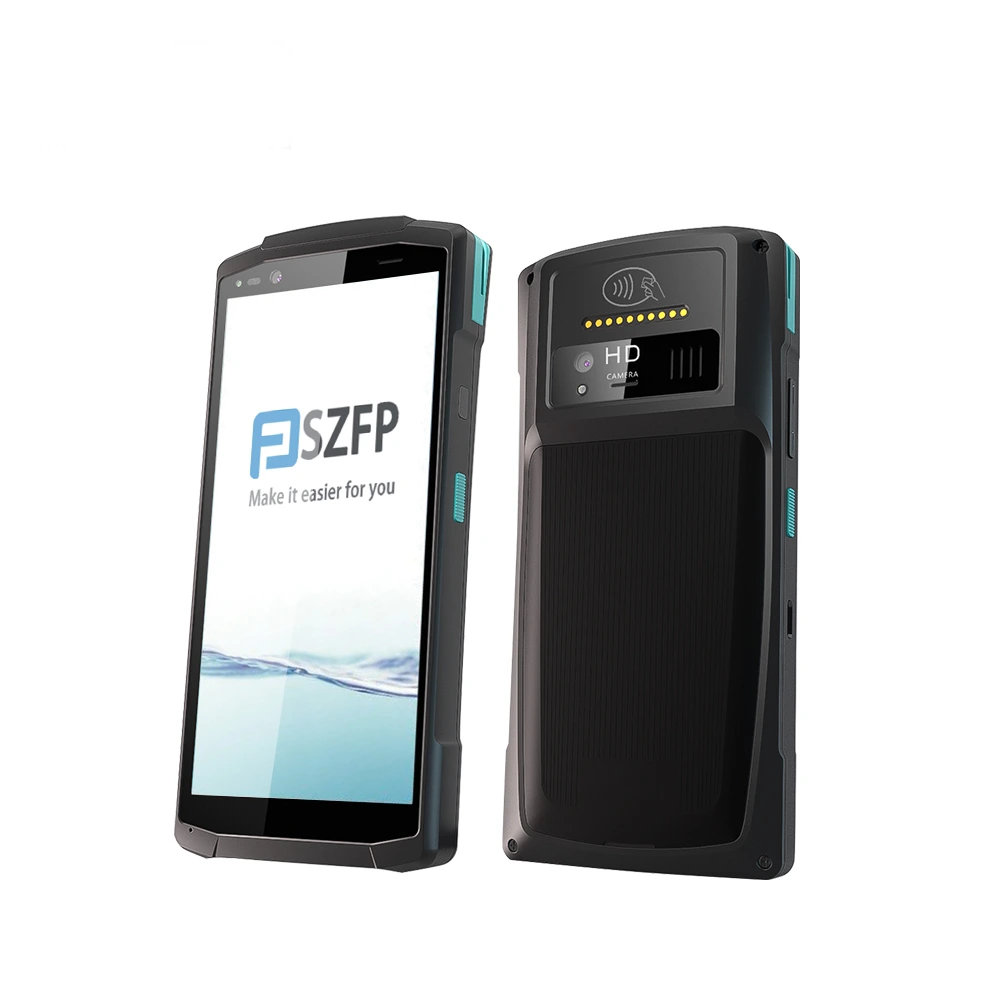

FP7600 Android Pos Terminal Pos Scanner Card reader with 5.7 inch TFT IPS LCD

·Qualcomm Octa-Core ARM Cortex-A53 1.8GHz; ·Safedroid OS (based on Android 10.0); ·Massive memory: 2G RAM + 16G ROM; ·5.7 inch TFT IPS LCD, resolution 1440*720; ·Full bands for global coverage: 4G/3G/2G, WLAN, Bluetooth, VPN; ·Dual camera for quickly QR code scan & Symbol 2D scanner as option; ·The grand 4.35V/3500mAH battery + extraordinary power management design ensures a full day duration; ·One-stop payment of MSR/ICCR/NFC,with PCI PTS 6.X, EMV L1& L2 . ·NFC for full scenarios such as transportation, logistic, and ID control.

Inquiry

Write a Review

Model	FP7600
OS	Safedroid OS (based on Android 10.0)
CPU	Qualcomm Octa-Core ARM Cortex-A53 1.8GHz
ROM	16GB ROM EMMC
RAM	2G RAM LPDDR3
Display	5.7 inch TFT IPS LCD, resolution 1440*720
Panel	Ultra sensitive capacitive touch screen, can work with gloves and wet fingers
Dimensions	163mmX77mmX17.5mm (max 21.8mm)
Weight	300g (Battery included)
Keys	Physical keys: Power on/off, Volume + /-, Scan1/ Scan2
Input	Chinese/English, and supports handwriting and soft keyboard
WIFI	IEEE 802.11 a/b/g/n, support dual Band 2.4GHZ and 5GHZ
Bluetooth	BT 4.2 LE and earlier
4G	European version(Default): FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28 TDD-LTE: B38/B39/B40/B41 American version(Optional): FDD-LTE: B2/B4/B5/B12/B13/B17/B25/B26 TDD-LTE: B38/B40/B41
3G	European version(Default): WCDMA: B1/B2/B4/B5/B8 TD-SCDMA: B34/B39 American version(Optional): WCDMA: B2/B4/B5
2G	GSM/GPRS/EDGE: 850/900/1800/1900MHZ
Magcard reader	Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional
Smart Card reader	Supports ISO7816 standard
Contactless Card reader	Supports 14443A/ 14443B
Camera	5MP camera with LED flash and auto-focus function
Satellite Positioning	Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo
LEDS	3PCS for indication
Audio	Speaker, Buzzer, Microphone, Receiver
Micro SD Card Slot	1 PCS support up to 128GB
SIM Card Slot	1 PCS MICRO SIM
PSAM Card Slot	2 PCS Conforms to ISO7816 standard
USB Port	1PCS TYPE C USB
Battery	Li-ion battery, 4.35V/3500mAH
Charging Port	Type C USB Port, 5V DC/2A
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 70°C
Humidity	5% to 95% Relative Humidity, Non-Condensing
Electromagnetic	CE, Rohs, FCC
Payment	PCI PTS 6.X, EMV L1&L2
Barcode Scanner (Optional）	Symbol 4710 2D Image Engine, Support 1D and 2D symbologies

Product advantage

-1

-2

-3

-1

-4

-5

-6

-7

fAQ

How do we proceed an order?

It is much appreciated if you could tell us your exact requirements/specification, then we will send a proforma invoice for you to make payment. Payment via Western Union, Paypal or T/T. Samples will be ready after full payment received. For bulk order, we require 30% deposit in advance, pay the 70% balance before shipping.

What do you offer?

We supply both hardware and software of POS system. We have POS terminals with Linux, WinCE, Android and other systems, wireless printer, signature pad, keypad/pinpad, POS accessories, etc.

How to do the freight calculation?

Shipment charges are calculated according to the higher of actual or volumetric weight and any shipment may be re-weighed and re-measured by the carrier to confirm this calculation.

Do you have warranty?

Can you give warranty of your products? Yes,we have warranty of 1 year period. we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with products' quality or service.
