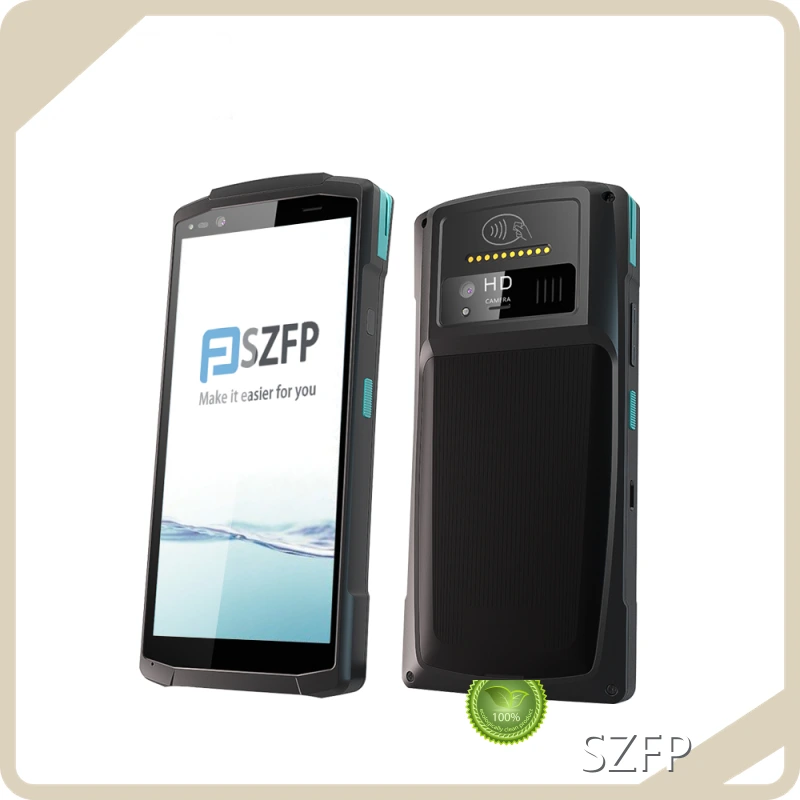

Pos Machine by SZFP-1
Product details of the pos machine
Quick Overview
SZFP pos machine crafted by our professional team is in its finest workmanship. The great quality and durability can definitely be guaranteed. SZFP Technology Limited keeps continuous innovation for better pos machine to our customers.
Product Information
pos machine has the following differentiated advantages compared with other products in the same category.
|
Model |
FP7600 |
|
OS |
Safedroid OS (based on Android 10.0)
|
|
CPU |
Qualcomm Octa-Core ARM Cortex-A53 1.8GHz
|
|
ROM |
16GB ROM EMMC
|
|
RAM |
2G RAM LPDDR3
|
|
Display |
5.7 inch TFT IPS LCD, resolution 1440*720
|
|
Panel |
Ultra sensitive capacitive touch screen, can work with gloves and wet fingers
|
|
Dimensions |
163mmX77mmX17.5mm (max 21.8mm)
|
|
Weight |
300g (Battery included)
|
|
Keys |
Physical keys: Power on/off, Volume + /-, Scan1/ Scan2
|
|
Input |
Chinese/English, and supports handwriting and soft keyboard
|
|
WIFI |
IEEE 802.11 a/b/g/n, support dual Band 2.4GHZ and 5GHZ
|
|
Bluetooth |
BT 4.2 LE and earlier |
|
4G |
European version(Default): FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28 TDD-LTE: B38/B39/B40/B41
American version(Optional): FDD-LTE: B2/B4/B5/B12/B13/B17/B25/B26 TDD-LTE: B38/B40/B41
|
|
3G |
European version(Default): WCDMA: B1/B2/B4/B5/B8 TD-SCDMA: B34/B39
American version(Optional): WCDMA: B2/B4/B5
|
|
2G |
GSM/GPRS/EDGE: 850/900/1800/1900MHZ
|
|
Magcard reader |
Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional
|
|
Smart Card reader |
Supports ISO7816 standard
|
|
Contactless Card reader |
Supports 14443A/ 14443B
|
|
Camera |
5MP camera with LED flash and auto-focus function
|
|
Satellite Positioning |
Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo
|
|
LEDS |
3PCS for indication
|
|
Audio |
Speaker, Buzzer, Microphone, Receiver
|
|
Micro SD Card Slot
|
1 PCS support up to 128GB
|
|
SIM Card Slot |
1 PCS MICRO SIM
|
|
PSAM Card Slot |
2 PCS Conforms to ISO7816 standard
|
|
USB Port |
1PCS TYPE C USB
|
|
Battery |
Li-ion battery, 4.35V/3500mAH
|
|
Charging Port |
Type C USB Port, 5V DC/2A
|
|
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-20°C to 70°C |
|
Humidity |
5% to 95% Relative Humidity, Non-Condensing
|
|
Electromagnetic |
CE, Rohs, FCC |
|
Payment |
PCI PTS 6.X, EMV L1&L2
|
|
Barcode Scanner (Optional） |
Symbol 4710 2D Image Engine, Support 1D and 2D symbologies
|
Product advantage
fAQ
Company Introduction
SZFP Technology Limited is regarded as one of the most progressive manufacturers of pos machine in China. We have rich experience in product design and manufacture. Our knowledgeable project teams are a multi-skilled group, ranging from experienced engineers (some with over 10 years’ experience in the pos machine industry) to top designers, giving us the advantages of finishing the orders. Every pos machine is produced by professional procedures. Check it!
Do not hesitate to contact us if you are interested in ourAndroid Pos,MPos,Traditional pos.
